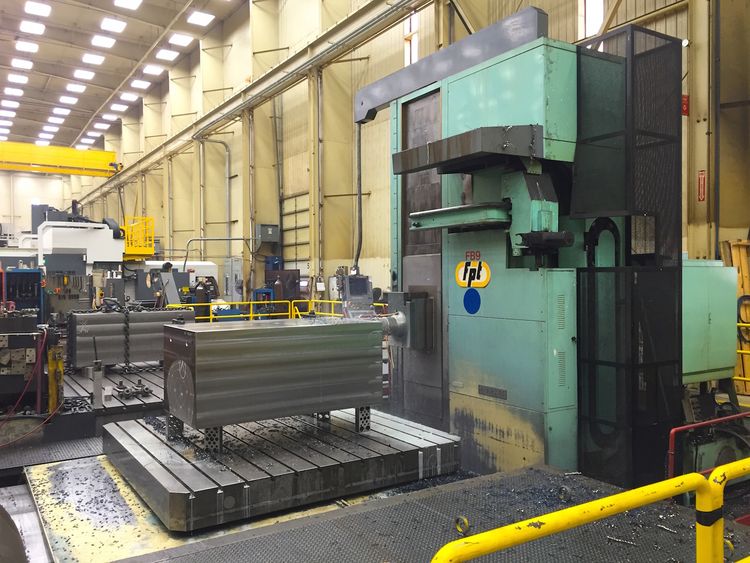

FPT M-ARX M90 160 mm 2500 rpm
EUROPE (Western and Northern)
FPT M-ARX M90
Capacity: 9000x3000x1200 + 600 mm
Working capacity Longitudinal (x): 9000 mm
Vertical (y): 3000 mm
Cross ram (z): 1200 mm
Quill (w): 600 mm
Cnc Cnc: FIDIA C20
Drives: SIEMENS SINUMERIK
Notes: remote flyer
Spindle Quill diameter: 160 mm
Spindle power: 47 Kw
Gearbox: I: 4-190
Rotating speed: 2500 Rpm
Taper: ISO50
Support: Hydrostatic
Rapid feeds x: 15 m / min
Rapid y: 15 m / min
Rapid z: 15 m / min
Rapid w: 15 m / min
Rapid v: 15 m / min
X: 10 m / min
Y: 10 m / min
Z: 10 m / min
W: 15 m / min
V: 15 m / min
Atc Positions: 40
Table 1 Available upon request: Yes
Brand: FPT TRT50303030
Surface: 3000x3000 mm
Translation: 3000 mm
Accuracy (b axis): 360000x0.001 °
Capacity: 50000 Kg
Support: Hydrostatic
Pick up station for heads Positions: 4
Head 1 Type: TAM
Spindle taper: ISO50
A axis: 360x1 °
C axis: 360x1 °
Max torque: 1800 Nm
Max speed: 2500 Rpm
Head 2 Max torque: 400 Nm
Max speed: 7500 Rpm
Head 3 Max torque: 1800 Nm
Max speed: 2500 Rpm
Total power supply: 95 Kw
Machine total weight: 81000 Kg
Floor space: 17100x9910x6330 mm
Mantainance & use books: Yes
Electrical drawings: Yes
Availability: ready
Available in stock: yes
Relevant updates made on the machine: FPT TAM Head Review in 2015
