Masterwood Project 320 3 axles

Ref : 2526915-15-MT
Condition : Used
Manufacturer : Masterwood
Model : Project 320
Nb Of Axis : 3 axles
Year(s) : 2001
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)

CNC machine

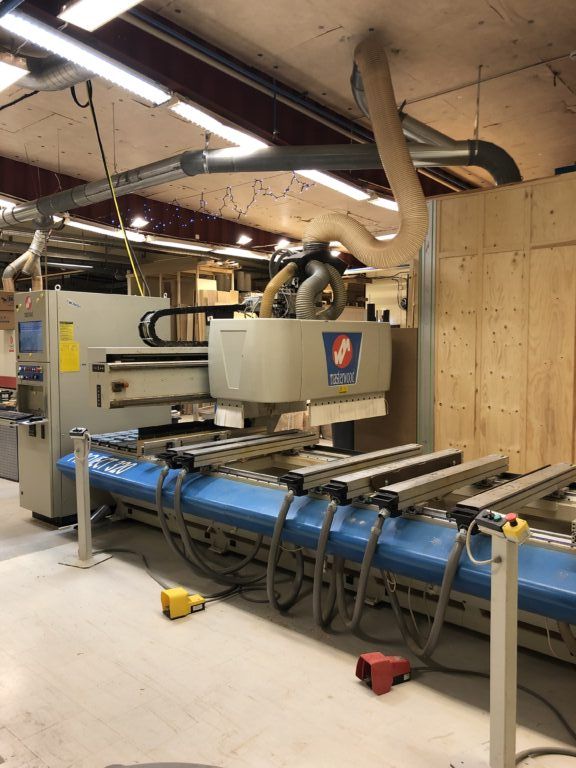

Masterwood Project 320 with 3 axles.
a little over 14000 hours of operation on the spindle.
Machine weight approx. 3600 kg, electrical cabinet weight approx. 400 kg
Electrical cabinet dimensions 1300x600. height 2100 mm.
No grates for the machine, but there are three mats, these are not connected today.

Max diameter tool 120mm.
Max diameter tool shank 25mm.
Max length tool after chuck 120mm.
Plate with 8 tool slots, automatic change.
12 Chucks ISO30, some with ER30 and some with ER40 collet.
There is a button to manually release the tool from the spindle.
6 stops on the beams at the back, 6 stops on the beams approx. 800 mm from the back stop. 2 stops left and 2 right both adjustable in Y Led.
6 beams with 4 lifting arms, 2 circuit vacuum systems. two vacuum zones left and right 3 beams each.
The pillars by the machine are the start/pause button and also to release the vacuum for the cups if you need to move them.
The pedal below is to activate the vacuum to suck the workpiece 1 per zone. can be connected so that both zones are the same zone.
The length of the machine with both front guards mounted is 6635mm + electrical cabinet,
width approx. 3300 without mats and 4675 with mats. height approx. 2600mm.
The CAD/CAM program is called Masterwork, it is possible to import DXF files.
The machine program itself is called MW310 and it is where you load the programs and control the machine during operation.
operating system Windows and the computer was changed in 2013/2014.
It is possible to mirror all programs, it is also possible to switch between left and right zones.
Total axle length X-Y-Z 3555-1735-270 mm.
The table's total milling surface X-Y 3000-1300 mm.
Maximum workpiece height 110mm above cup.
The height of the cups is 50mm.
Max axis speed X-Y-Z 60-50-18 m/min.
Vacuum pump Becker 100m3/h 3 kw. weight about 100kg?.
Total 29 kVA, 400 volts,
Part of the drill box was renovated in 2021.
A total of 19 vertical drill spindles 10 in X and 9 in Y. all the other way around.
The drill box has a 3 kW motor. 32 mm between the drill spindles 4000rpm.
2 horizontal double drills in the X direction and 1 horizontal double drill in the Y direction.
maximum length of horizontal drills is 57 mm in total, but it is possible to drive with 70 mm without problems.
1st saw unit drill box in X joint. max diameter 125mm, 4000rpm.
The inverter for the cutter is 7.5kw and the cutter is 8kw. 1000-24000rpm.
diameter hose connection 250, approx. 4900m3/h
compressed air 7-8 bar, 100Nl/min. everything works above 6 bar.
