Milltronics Milltronics 7200 CNC Control 1480 RPM ML35II/120 CNC Lathe 2 Axis

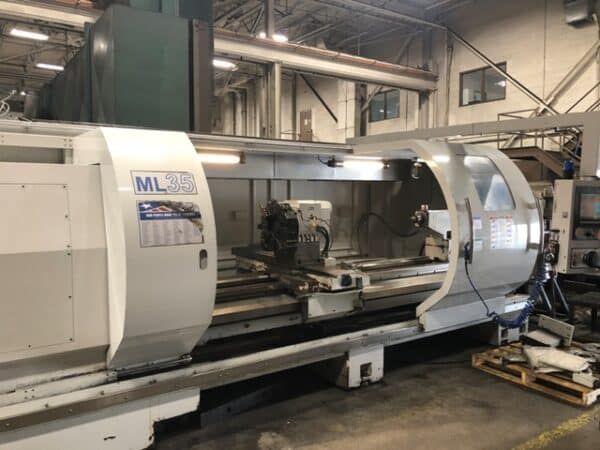

MILLTRONICS ML35II/120 CNC Lathe
2008

Swing Over Bed:36.2″
Swing Over Gap: 45″
Swing Over Cross Slide: 21.6″
Travel Cross Slide: 19″
Distance Between Centers: 126″
Bed Width: 22″
Chuck Size, 20″ 3-Jaw Hydraulic
Chuck Brand: Schunk RT-AS Model
Hole Through Chuck: 4” Dia.
Spindle Horsepower, 35 /25HP
Spindle Nose, A2-11
Spindle Bore, 6″
Spindle Speed Range 1, 10-375 RPM
Spindle Speed Range 2, 10-1480 RPM
Max. Supported Part Weight, 6600 lbs
Tailstock Quill Taper, MT 7
Tailstock Quill Travel, 8″
Tailstock Quill Diameter, 4.92″
Machine Weight, 25,000 lbs.

Equipped With:
Milltronics 7200 CNC Control
Chip Conveyor
Coolant Tank
8-Station Auto Turret
(2) Steady Rests
(1) Follower Rest
Hydraulic Tailstock
Rear Mounted 3 Jaw Chuck 15” Dia.
Conversational Programming
Dimensions: 19ft Long x 90” Wide x 88” High
