Mori Seiki Mitsubishi MSC-501 (18iTA) 3500 RPM ZL-253B SMC 3 Axis

Ref : 2301828-3-MT
Condition : Used
Manufacturer : Mori Seiki
Controller : Mitsubishi MSC-501 (18iTA)
Spindle Speed : 3500 RPM
Model : ZL-253B SMC
Nb Of Axis : 3 Axis
Year(s) : 2003
Quantity : 1
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

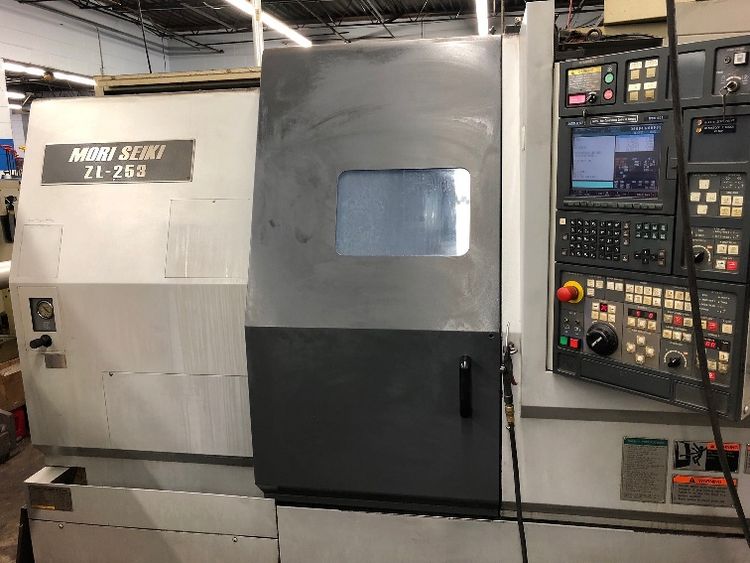

Mori-Seiki ZL-253B SMC Mitsubishi MSC-501 (18iTA)
2003

Description Spec Values
Capacity: Swing / Swing Over Cross Slide 26.77" / 20.08"
Maximum Cutting Diameter (turret one & turret two) 15.35" / 11.57"
Maximum Turning Length 16.22"
Main Spindle: Speeds 35 - 3500 RPM
Spindle Bore / Bar Capacity / Spindle Nose 3.38" / 2.97" / A2-8
Main Motor (30 min / continuous) 25 / 20 HP
Sub-Spindle: Speeds 60 - 6,000 RPM
Spindle Bore / Bar Cap / Spindle Nose / Indexing 1.69" / 1" / A2-5
Motor (30 min. / cont.) 10 / 7.5 HP
Turrets: Number of Positions (turret one / turret two) All Live 10 / 8 Tools Each
Travels: X-Axis Travel (turret one & turret two) 9.3" / 6.89"
Z-Axis Travel (turret one & turret two) 19.88" / 19.29"
B-Axis Travel (sub-spindle) 19.9"
Rotary Tools: Rotary Tool Speed 100 - 3,000 RPM
Rotary Tool Motor (30 min. / cont. turret one) 6 HP
Rotary Tool Motor (30 min. / cont. turret two) 3.3 HP
Rapids: Rapid Traverse (X / Z) 708 / 944 IPM
Sub Spindle Rapid Traverse 944 IPM
Dimensions: Floor Space (L x W x H) 157" x 85" x 83"
Weight (approx) 15,000 Lbs

Equipped With
Additional Info.: 10" 3-Jaw Hydraulic Chuck Main & 8" 3-Jaw Hydraulic Chuck Sub
Tool Presetter
Live Tool Holder
MAPPS Conversational
Chip Conveyor
