Muratec FANUC 16iTA 3500 rpm MT25 6 Axis

Ref : 2730979-3-AW

Condition : Used

Manufacturer : Muratec

Controller : FANUC 16iTA

Spindle Speed : 3500 rpm

Model : MT25

Nb Of Axis : 6 Axis

Year(s) : 2005

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

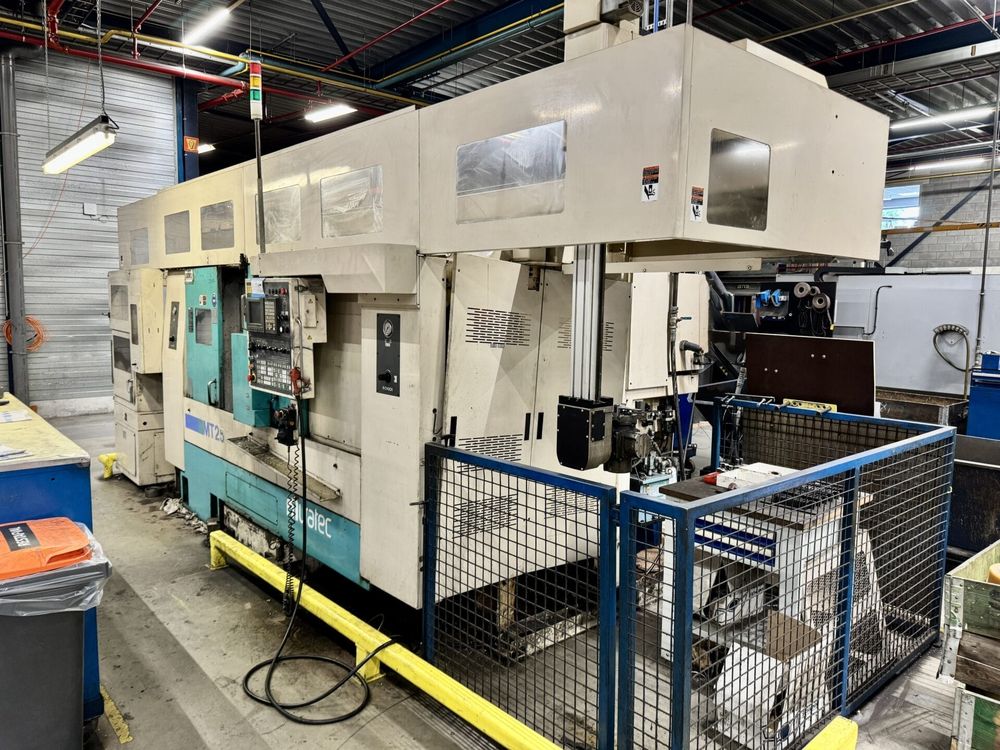

MURATEC MT25
Year: 2005

Twin spindle
Twin turret
C-axis
Y-axis
Live tooling
Control: FANUC 16iTA

X1 travel (radius): 250 mm
X2 travel (radius): 250 mm
Z1 travel: 300 mm
Z2 travel: 920 mm
Y1 travel: ±60 mm
Y2 travel: ±60 mm

Gantry Y-axis travel: 850 mm
Gantry Z-axis travel (Left): 2730 mm
Gantry Z-axis travel (Right): 320 mm
Gantry X-axis travel: 150 mm

Maximum swing: 300 mm
Maximum workpiece diameter: 290 mm
Maximum workpiece length: 200 mm
Tool changer: 15 tools
Spindle speed: 3500 rpm
Machine weight: 10,000 kg
With bar feeder
