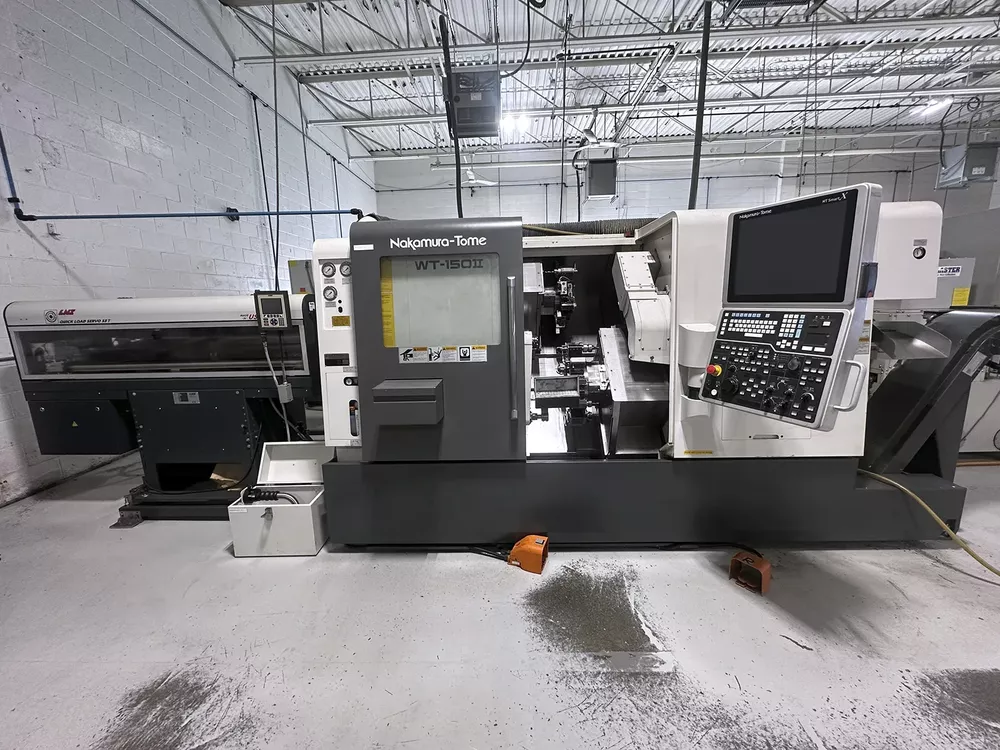

Nakamura Tome Fanuc 3li-B Smart X Variable Speed WT-150IIMMYS 2 Axis

X axis travel upper: 6.2"
Z axis travel upper: 18.3"
Y axis travel upper: ±1.4"
X axis travel lower: 6.5"
Z axis travel lower: 18.3"

Rapid traverse X: 630 IPM
Rapid traverse Y: 236 IPM
Rapid traverse Z: 1575 IPM
Control: Fanuc 3li-B Smart X
Y-axis upper turret
LNS Quick Load Servo S3T bar feeder
Chip Blaster JV401000 PSI high pressure coolant
MistBlaster 300 CFM mist collector
Fixed air blow for main spindle
Parts catcher A with stocker
Parts catcher type G
Chip conveyor right side outlet type with interval timer
N-T detachable tool setter
Manual handle retrace
Helical interpolation
Max turning diameter: 7.48"
Max turning length: 15.75"
Live tooling: yes
Live tooling spindle speed: 4500 RPM
Number of live tool stations: 24
Hainbuch main chuck
Kitagawa 6" 3-jaw chuck B206 for left spindle
Keller tramp oil separator plus magnetic mounting bracket
Misc ID/OD live tool holders
Tool positions upper: 12
Tool positions lower: 12
