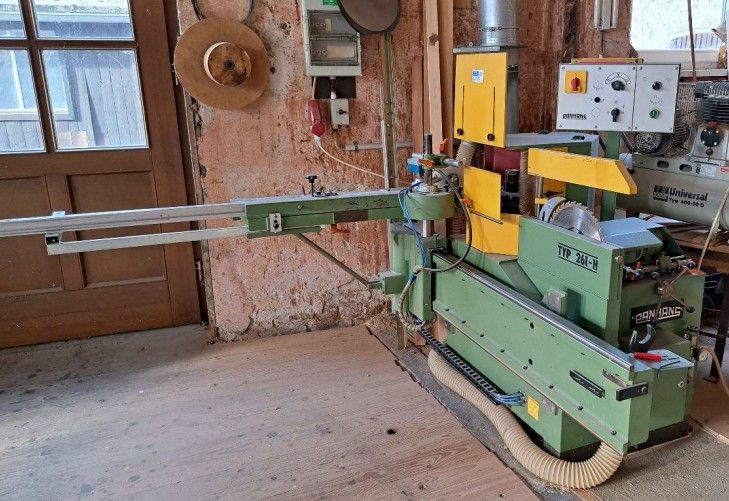

Panhans 261 H Tenon cutter
Ref :
2749425-15-MT
Condition :
Used
Manufacturer :
Panhans
Model :
261 H
Short Description :
Tenon cutter
Year(s) :
1993
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Used machine
Equipment and technical specifications:
Circular saw power: 2.6 kW
Circular saw speed: 3000 rpm
Largest saw blade diameter: 400 mm
Cutting height: 160 mm
Lateral adjustment: 120 mm
Milling motor power: 7.5 kW
Milling spindle speed: 4000 rpm
Milling arbor / tool holder: Ø 40 mm
Largest tool diameter: 400 mm
Largest tenon length: 170 mm
Rolling table height adjustment: 80 mm
Lifting spindle with pneumatic single stroke (2 tool positions, adjustable end positions),
adjustable saw unit via handwheel for different tenon lengths, automatic workpiece clamping,
lateral adjustment of the rolling table, rolling table clamp for miters up to 45°.
Weight: approx. 580 kg
