Toshiba BTD-200QF 4.3" 3000 RPM

Ref : 31015
Condition : Used
Manufacturer : Toshiba
Model : BTD-200QF
Spindle Size : 4.3"
Spindle Speed : 3000 RPM
Year(s) : -
Quantity : 1
Location : Seller or machines location:
United States (USA)
Last check : 06 Oct. 2020

Reference #31015

Toshiba BTD-200QF

FEATURES:

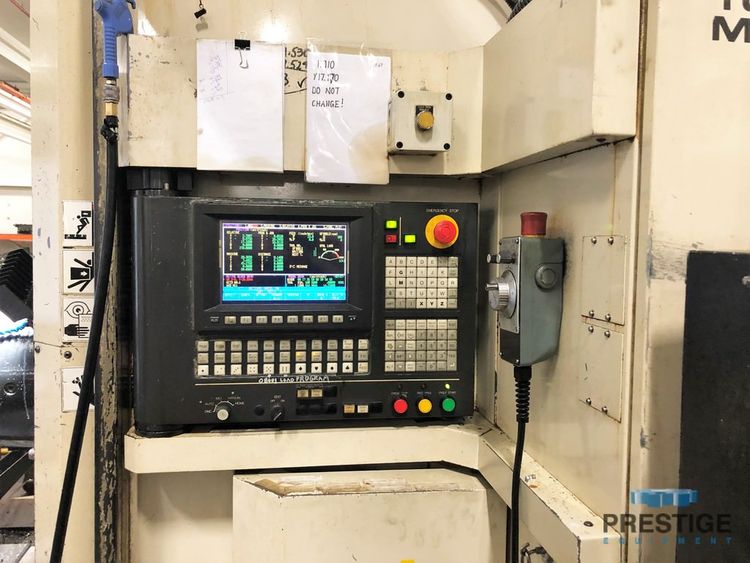

Tosnuc 888 CNC Controls
40-Station Automatic Tool Changer
(2) 39.37" x 39.37" Pallets with Pallet Shuttle System
Thru Spindle Coolant
Marposs Probing System
Chip Conveyor
30 HP Spindle Motor

CAPACITY:
Spindle Diameter ...................... 4.33"
Extended Quill Diameter ............... 7.87"
Taper In Spindle ...................... #50
Vertical Head Travel, Y-Axis .......... 39.37"
Table Cross Travel, X-Axis ............ 39.37"
Spindle Travel, Z-Axis ................ 15.74"
Saddle Travel, W-Axis ................. 27.55"
Table Size, (2) Pallets ............... 39.37" x 39.37"
Table Capacity ....................... 6,000 lbs
Table Indexing ........................ 0.001 Degree
Rapid Traverse (X,Y,Z Axes) ........... 472.4 IPM
Feed Rates ............................ .04-236.2 IPM
Table Load Capacity ................... 6,600 LBS
Spindle Speeds (2 Ranges) ............. 20-3000 RPM
Floor Space, L x W x H ................ 173" x 174" X 126"

Machine Weight ........................ 39,600 lbs.
EQUIPPED WITH:
Tosnuc 888 CNC Controls
40-Station Automatic Tool Changer
(2) 39.37" x 39.37" Pallets with Pallet Shuttle System
Thru Spindle Coolant
Marposs Probing System
Chip Conveyor
30 HP Spindle Motor
