3 Ingersoll Master Center Max. 4000 rpm

Ref : 16720
Condition : Used
Manufacturer : Ingersoll
Model : Master Center
Spindle Speed : Max. 4000 rpm
Spindle Size : -
Year(s) : 1996
Quantity : 3
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)
Last check : 06 Oct. 2020

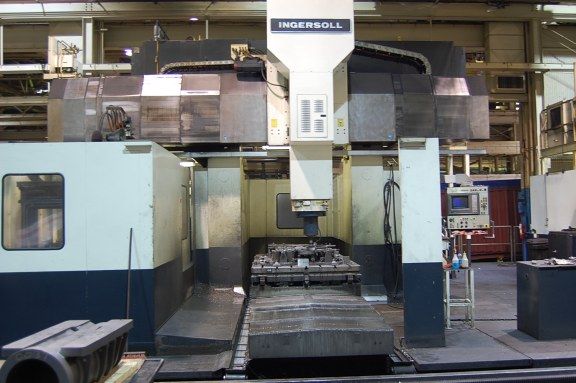

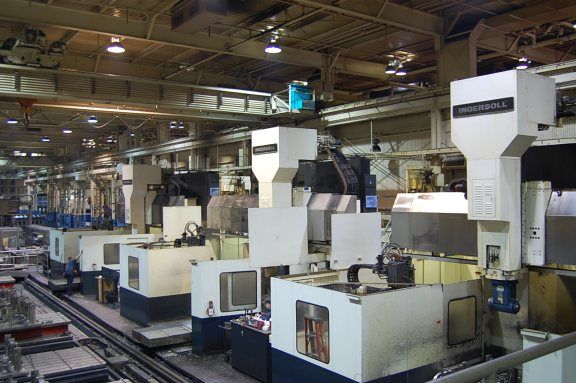

Ingersoll 5-Face CNC Machining Center (3-Machines)
FANUC 15MB 5-Axis CNC Control

X-Axis, Table Travel 98"
Y-Axis, Horizontal Head Travel 78"
Z-Axis, Ram Stroke 39"

Pallet Size 59" x 98"
Distance Between Columns 78.74"
Distance Spindle Nose to Table 49"
Ram Cross Section 23" x 24"
Spindle Taper #50
Spindle Motor 50 HP
Spindle Speeds 20-4000 RPM
Vertical Spindle Attachment, 50 HP to 4000 RPM
Right Angle Attachment, 50 HP to 4000 RPM

Fanuc 15MB 5-Axis CNC Control (Each Machine)
100 Station Automatic Tool Changer (Each Machine)
Automatic Spindle Changer (Each Machine)
Coolant System (Each Machine)

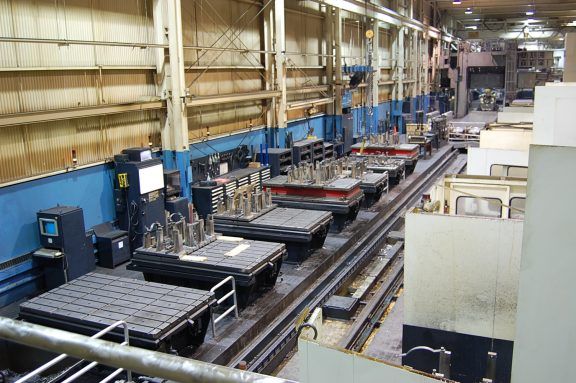

11-Station Pallet Shuttle System (Optional)
Telescopic Steel Way Covers

Purchase as Individual Machines or as Complete
Machining Cell:
(3) Machines & 11-Station Pallet
