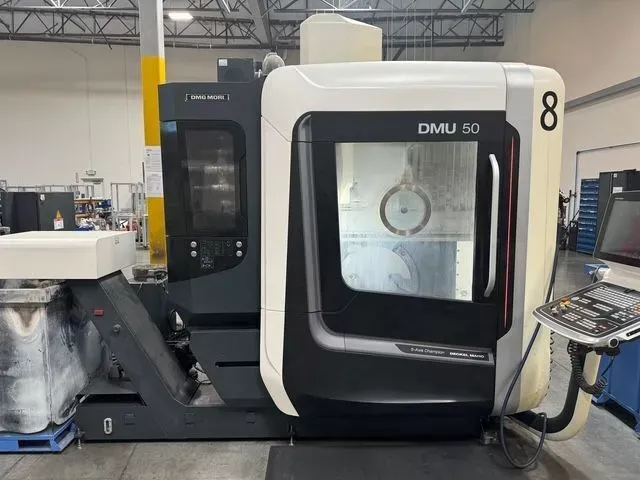

DMG MORI DMU 50 GEN III 5 Axis

X-axis travel 25.6 in
Y-axis travel 20.4 in
Z-axis travel 18.7 in
Rapid traverse X-axis 1654 in/min
Rapid traverse Y-axis 1654 in/min
Rapid traverse Z-axis 1654 in/min
A-axis travel -5° to +110°
C-axis travel 360°
CNC control Heidenhain TNC 640 3D
3D Quick Set
Handheld remote pulse generator
Linear scales on all axes
Bar capacity not specified
Swing not specified
Spindle speed 20000 rpm
Spindle motor power 28 hp
Spindle taper HSK 63
Coolant through spindle 40 bar
Air blast through spindle center
Main spindle nose to table 5.9–24.6 in
Milling spindle speed 20000 rpm
Automatic tool changer 30 tools
Tool diameter 3.14–5.11 in
Tool length 11.8 in
Tool weight max 13.2 lb
Table size 24.8 x 19.6 in
Max table load 660 lb
Chip conveyor
Spray gun for swarf removal
Transformer
Blum tool length laser measurement system
Infrared measuring probe PP60 optical
Rotating clear view window
Programmable roof opening by M-code
Machine weight 11500 lb
