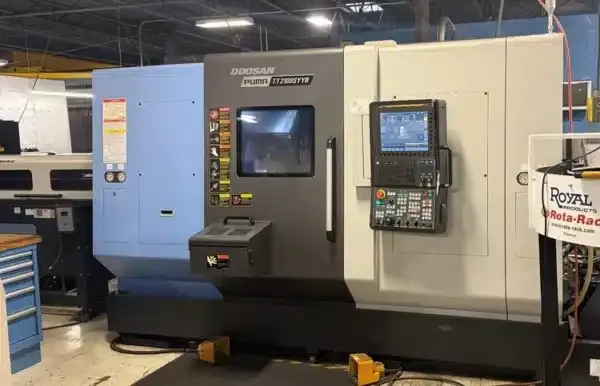

Doosan DN FANUC I PLUS CONTROL 5000 RPM Puma TT2100SYYB 9 Axis

Doosan Puma TT2100SYYB
2021

SWING OVER BED 9.1″
TURNING DIAMETER 9.1″
TURNING LENGTH 9.1″

DISTANCE BETWEEN SPINDLES 36.6″
CHUCK SIZE 1 10″
CHUCK SIZE 2 8″
SPINDLE NOSE 1 A2-8
SPINDLE NOSE 2 A2-6
SPINDLE BORE DIAMETER 1 3.6″

BAR CAPACITY 1 3.2″
SPINDLE SPEEDS 1 3,500 RPM
SPINDLE HORSEPOWER 1 45 hp
SPINDLE BORE DIAMETER 2 3.1″
BAR CAPACITY 2 2.6″
SPINDLE SPEEDS 2 5,000 RPM
SPINDLE HORSEPOWER 2 45 hp

X1 – AXIS TRAVEL 6.5″
X2 – AXIS TRAVEL 6.5″
Z1 – AXIS TRAVEL 27.6″
Z2 – AXIS TRAVEL 27.6″
Y1 – AXIS TRAVEL 3.9″
Y2 – AXIS TRAVEL 3.9″
C – AXIS INDEXING 1 0.001
C – AXIS INDEXING 2 0.001
W – AXIS TRAVEL SUB SPINDLE 28.7″

RAPID TRAVERSE RATE – X1 1181 ipm
RAPID TRAVERSE RATE – X2 1181 ipm
RAPID TRAVERSE RATE – Z1 1575 ipm
RAPID TRAVERSE RATE – Z2 1575 ipm
RAPID TRAVERSE RATE – Y1 590 ipm
RAPID TRAVERSE RATE – Y2 590 in/min.
TURRET TOOL POSITIONS 1 24 station
TURRET ROTARY TOOL SPEEDS 1 5,000 RPM
TURRET ROTARY TOOL HORSE POWER 1 10 hp
TURRET TOOL POSITIONS 2 24
TURRET ROTARY TOOL SPEEDS 2 5,000 RPM
TURRET ROTARY TOOL HORSE POWER 2 10 hp
MACHINE WEIGHT 21,165 lb
CONTROL CNC (DN FANUC I PLUS CONTROL)
DIMENSIONS 153″ x 93″ x 90″

EQUIPPED WITH:
DN FANUC I PLUS CONTROL
CHIP BLASTER F2-60H 1000PSI COOLANT SYSTEM
LNS BARFEED
CHIP CONVEYOR
FULL COMPLIMENT OF ROTARY HOLDERS
ALL STANDARD STATIC HOLDERS
