Ingersoll Master Head ARMM 3.0 Adjustable Rail Max. 3000 rpm

Ref : 16404
Condition : Used
Manufacturer : Ingersoll
Model : Master Head ARMM 3.0 Adjustable Rail
Spindle Speed : Max. 3000 rpm
Spindle Size : -
Year(s) : 1998
Quantity : 1
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)
Last check : 06 Oct. 2020

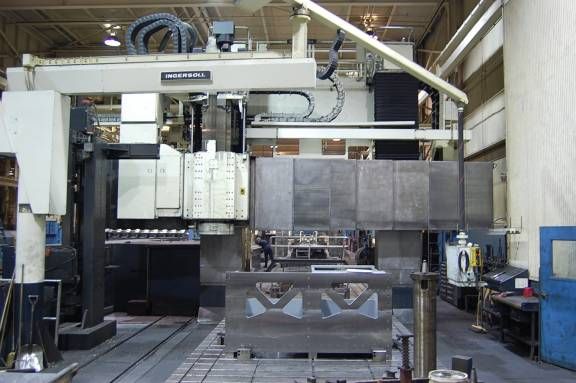

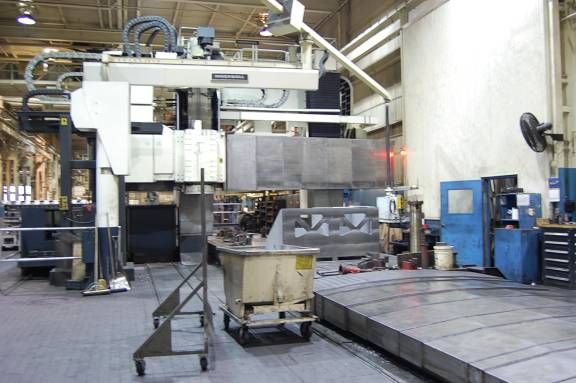

Ingersoll Double Column 5-Axis CNC Planer Mill
FANUC 15M 5-Axis CNC Control

TRAVELS:
X-Axis, Table Travel 452.75"
Y-Axis, Horizontal Head Travel 163.38"
Z-Axis, Ram Stroke 39.37"
W-Axis, Cross Rail Vertical Travel 80.70"
A-Axis, Head Rotation 360,000 Positions
B-Axis, Head Swivel 360,000 Positions

SPECIFICATIONS:
Table Size, Joined 118.12" x 491"
Table Size, Each 118.12" x 226"
Distance Between Joined Tables 39.37"
Distance Between Columns, w/o Covers 127.95"
Distance Between Columns, w/Covers 118.11"

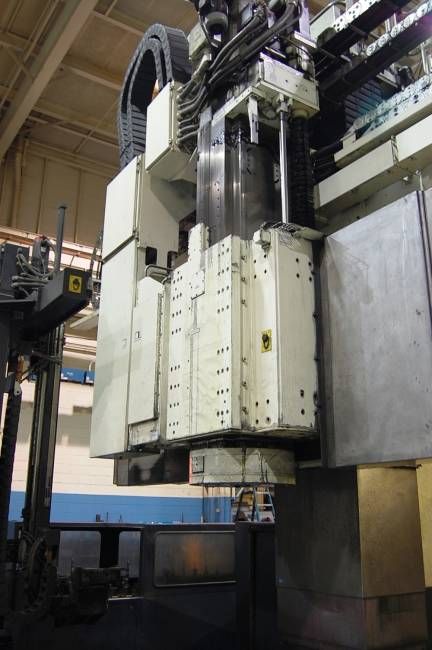

Ram Cross Section 23.62" x 23.62"
Distance Table to Ram Face 127"
Distance Under Cross Rail 131"
Minimum Distance Ram to Table 46.5"
Spindle Taper Cat V-50
Speed 2-3000 RPM
Table Weight Capacity, Joined 139,480 Lbs
Table Weight Capacity, Individual 69,740 Lbs

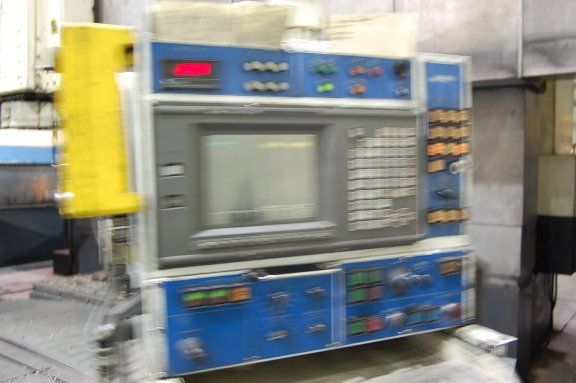

Fanuc 150-M 5-Axis CNC Control
120 Station Automatic Tool Changer (ATC)
Automatic Attachment Changer (AAC)
Thru Spindle Coolant
(3) Right Angle Heads (Assorted Sizes and Lengths)
(3) Straight Milling Heads (Assorted Sizes and Lengths)
Articulating Head (Addtional Cost)
Sliding Steel Way Covers
