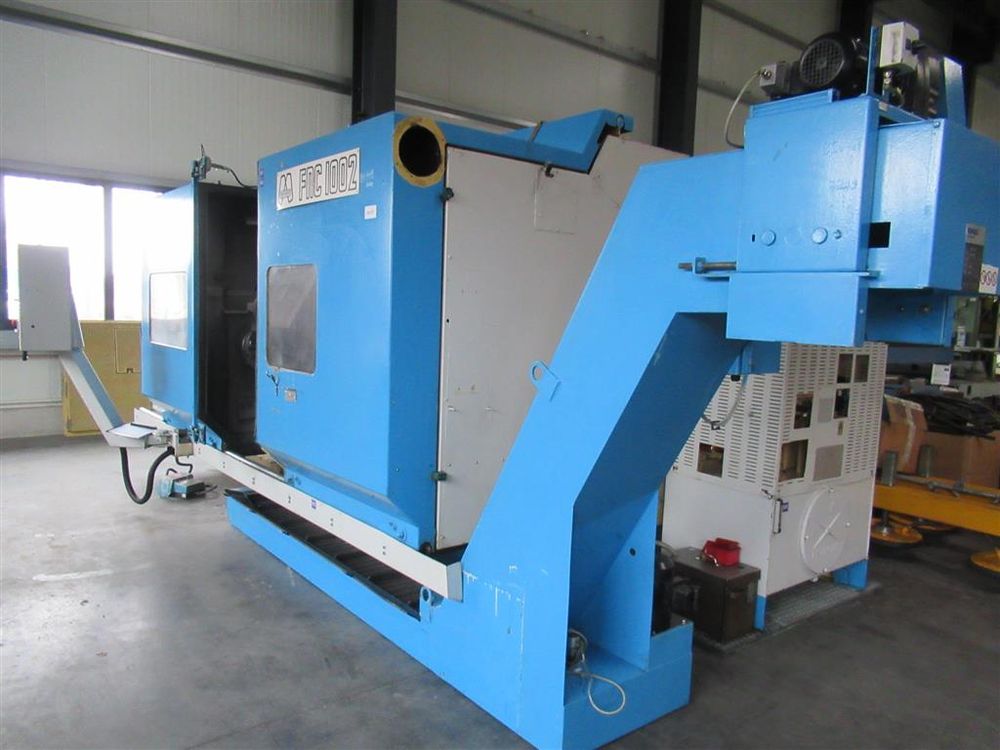

Monforts Siemens Sinumerik 3T-4 4000 stufenlos U/min FNC 1002 2 Axis

Monforts FNC 1002
year of manufacture: 1986

turning diameter over bed:
mm
turning dia. over face-slide:
420 mm
turning length:
mm
control:
Siemens Sinumerik 3T-4
centre distance:
1000 mm
swing diameter over bed:
660 mm
x-axis:
ca. 350 (plan) mm
z-axis:
ca. 1000 (längs) mm
turning speeds:
18 - 4000 stufenlos U/min
spindle bore:
Ø 110 mm
tool turret - number of stations:
12 (Scheibenmagazin)
Number of working hours:
bitte auf Anfrage h
interface:
nein
weight of the machine ca.:
15,5 komplett t
dimensions L x W x H:
m
dimension swarf conveyor LxWxH:
m
total power requirement:
60 kW
dimension machine approx.LxWxH:
6,5 x 3,4 x 2,6 m
dimensions of hydaulic:
1000 x 800 x 1570 mm

additional information

other features:

Drive power of the rotary spindle 30 DC kW or 60 DC kW
4-step gearbox
hydraulic power chuck Forkardt 3NHF 400-82, Ø 400mm
hinged belt conveyor Knoll, type 300 S-2 / 230, year 2009; discharge height 1200mm
Hydraulic power unit: Rexroth, max. 40bar, 250Liter
E-cabinet equipped with Rittal SK 3304500
cooling is done by the tools in the magazine (specification according to manufacturer)
coolant tank for 300Liter
no tailstock
