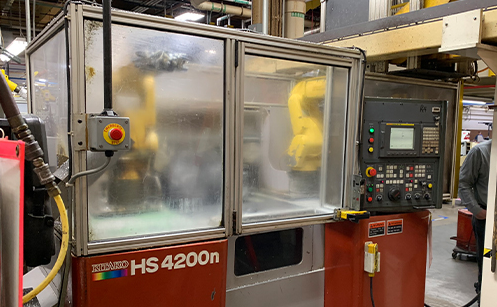

Kitako Fanuc 18Ti 4500 RPM HS4200N 2 Axis

Box slideways for X & Z axis
Chip air blow devices for loading chucks – 2 units
Chip conveyor
High-pressure coolant 100 PSI
Multiple repetitive cycles G70–G76
Tool life management
Tool geometry offset
2 spindle orientations for loading spindles
Fanuc robotic automation system
(2) LR Mate200/C/R-30iA Mate robots
(2) robot risers
(2) end-of-arm tool systems
System integration at InSinkErator

X-axis travel: 6.3"
Z-axis travel: 9.9"
Carrier index: 1.5 sec / 180°, 1 sec / 90°
Control: Fanuc 18Ti
Max turning diameter: 7.8"
Max turning length: 4"
Spindle speed: 4500 RPM
Spindle motor: 20 HP
Chuck size: 8" (not included)
Number of spindles: 4 (2 turning / 2 load & unload)
Spindle type: A2-6
Feed rates X/Y/Z: 6693 IPM / 4724 IPM / 2165 IPM
Dia curveic coupling: 28.35" with 10,780 lbs clamping force
