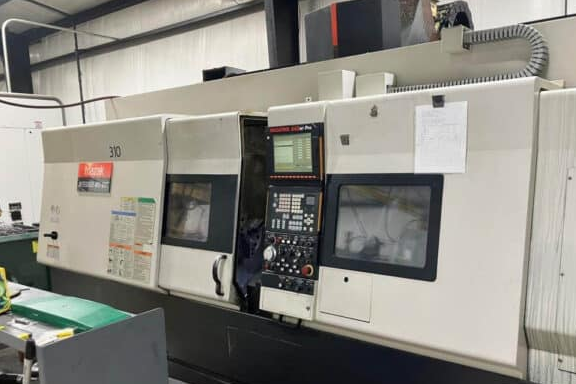

Mazak CNC CONTROL 3,300 RPM INTEGREX 400-3ST

Maximum swing: 33.5"
Maximum swing using Y-axis: 26"–33.5"
Maximum swing over cross slide: 33.5"
Maximum swing over lower turret: 16.5"
Maximum cutting diameter (upper): 30"
Maximum cutting diameter (lower): 16.5"
Maximum cutting length: 60"
Maximum distance between chuck faces: 60"

Spindle bore (main): 4.4"
Maximum bar work (main): 4.0"
Main spindle speed: 3,300 RPM
Main spindle horsepower (cont./30 min): 35/40 HP AC

Spindle bore (sub): 3.46"
Maximum bar work (sub): 3.0"
Sub spindle speed: 4,000 RPM
Sub spindle index (programmable): 0.001°
Sub spindle horsepower (cont./30 min): 30/35 HP AC

Rotary tool spindle speed: 12,000 RPM
Rotary tool spindle horsepower (20% ED): 24.8 HP AC

Upper turret magazine capacity: 20 tools
Lower turret type: Drum
Lower turret tool positions: 9

Mazatrol Fusion 640MT Pro CNC control
Sub spindle
Milling
12" chuck
10" chuck
