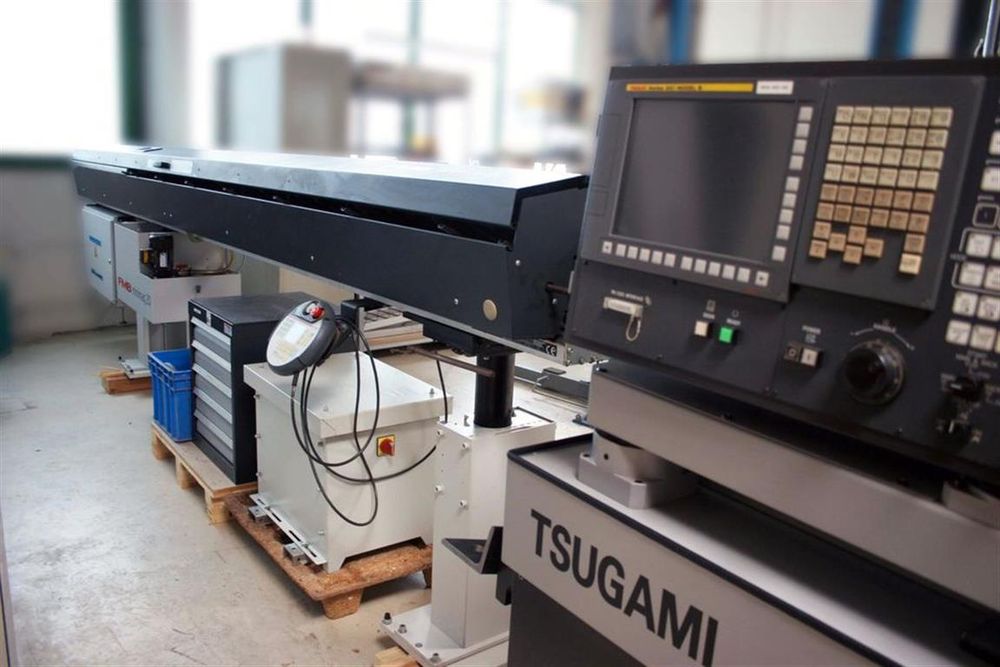

Tsugami CNC CONTROL 10000rpm HS 2075AX 7 Axis

Maximum machining length: 250mm
Number of controlled axes: 7
Simultaneous machining axes: 5
B axis: 0° to 130°
Bar capacity minimum: 3mm
Bar capacity maximum: 20mm
Main spindle power: 3.7kW
Sub spindle power: 2.2kW
Main spindle speed: 10000rpm
Sub spindle speed: 10000rpm
C axis: main and sub spindle
Number of linear carriers: 2
Total number of tools: 35
Machine dimensions: 2110 x 1200 x 1885mm
Machine weight: 3300kg
Operating hours: 7200h

Conversion from long to short turning
Deep hole drilling stations
Nakanishi high-speed spindle
Rear slide with Y axis
Cross drilling rear side
Chip conveyor
Fire extinguishing system
FMB bar feeder Minimag 20
