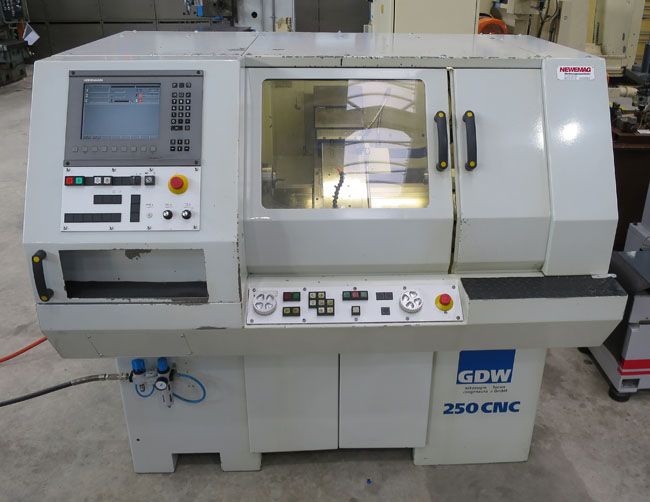

GDW HEIDENHAIN Model Manual Plus 4110 6000 U/Min. 250 CNC 3 Axis

GDW 250 CNC
Year of manufacture 2005

Control: Manufacture
HEIDENHAIN
Model
Manual Plus
4110

Turning diameter over bed
248 mm
Center height
125 mm
Distance between centres
500 mm
Turning length
400 mm
Turning diameter over cross slide
108 mm
Hole in spindle
38 mm
Taper in spindle:
DIN.
Spindle speeds:
Inf. variable: From - up to
-6000 U/Min.
Taper in tailstock: Morse taper
3
Quill: Diameter
45 mm
Quill: Stroke
80 mm
Feeds:
Longitudinal / Cross
3000 mm/Min
Rapid movements:
Longitudinal
7,5 m/Min
Cross
7,5 m/Min.

Motor 400 volt, power
11 KW
Size of machine: width/depth/height approx
1650x1400x1550 mm
Weight approx
1250 Kg

Accessories and equipment:
3-jaw chuck: Diameter
125 mm
Drawing tube for collets:
Number of collets
24
Quick change tool holder: manufacture
MULTIFIX
Number of holders
10
Drill chuck: No
1
Revolving centre.
Coolant.
