3 TMP, Voronezh K2543 2000 tons

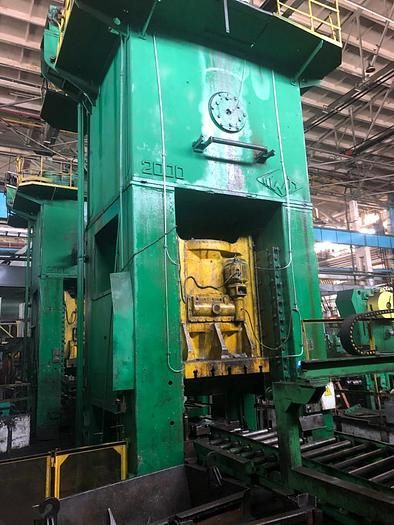

TMP VORONEZH K2543,2000T
Year 1967

Quantity pcs. 3
Maximum force 2000 tons
Slider stroke length 500 mm
Press weight 228.990 tons

Description
Maximum force: 2000 tons
Slider stroke length: 500 mm
Number of courses of a slider per minute: 6
Number of single turn-on: 3.6
The closed height: 1160 mm
Adjustment: 220 mm
Table size:
-From left to right: 2000 mm
-From front to rear: 2500 mm
-Thickness die plate: 300 mm
Slider overall dimensions: 1600x2000 mm
Aperture in a table: 1250x1250 mm
window dimensions in cheeks: 1600x1000 mm
Maximum Die Weight: 6000kg
Hydropneumatic cushion in the table:
·working stroke 250mm
·maximum clamping force 350 ton-force
·maximum push force 20 ton-force

Main electric motor power: 125 kW

Press overall dimensions: 5390x4870mmx8860

Press weight: 228.990 tons
