4 Erfurt PKZe 1250 1250

Erfurt PKZe 1250
Year 1975

Capacity, ton 1250
Stroke, mm 500
Table size, mm 1600 x 1850
Press weight, kg 130000

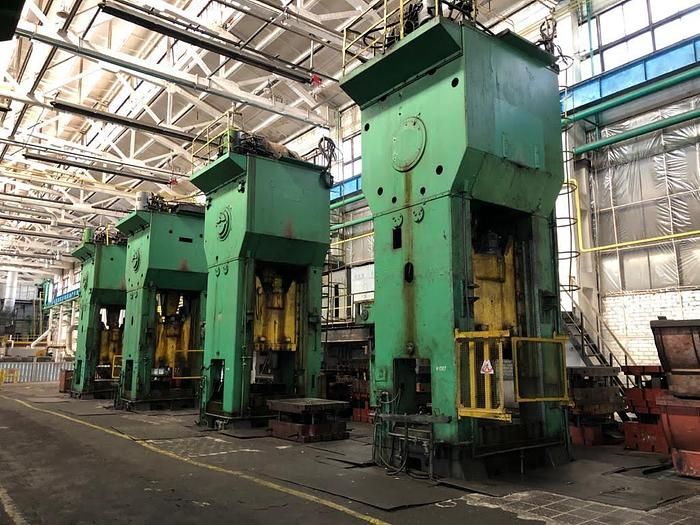

Quantity: 4 pcs
Description
Capacity, ton 1250
Stroke, mm 500
Min number of no-load stroke: 8 /per min
Slider adjustment, mm 215
Max. shut height between bolster plate and slider (stroke down, adjustment up), mm 860
Table size, mm 1600 x 1850
Slider size, mm 1300 x 1400
Table gap size, mm 1100 x 1100
Distance between columns, mm 1630
Distance between slides, mm 1580
Cushion travel, mm 200
Cushion capacity, ton 200
main motor power, kW 90
Press weight, kg 130000
